100G/200G/400G Coherent Optical Receivers

Contact Us and PDF Datasheet Request
Datasheet Request Contact Us

Discovery's Coherent Optical Receivers are designed for 100 Gb and upcoming 200 Gb and 400 Gb fiber optic communication systems. Optical Dual Polarization QPSK (DP-QPSK) and 16 QAM modulation formats are detected and converted to electrical signals that can be fed to a digital storage scope, or even a sampling scope. Our Coherent Lab Buddy is a user friendly lab instrument, which allows our customers to start doing their valuable experiments in a very short period of time.

AGC Balanced PIN + TIA Optical Receiver

DSC-R412 Linear AGC Balanced Receiver for 40G/100G Coherent Communications
  • Adjustable differential transimpedance gain (50 to 4000 ohms)
  • Adjustable differential output voltage (200 to 700 mVp-p)
  • Wide optical dynamic range of -16 to +2dBm
  • Wavelength Range of 1064 to 1650 nm
  • Excellent DPSK Eye Pattern quality

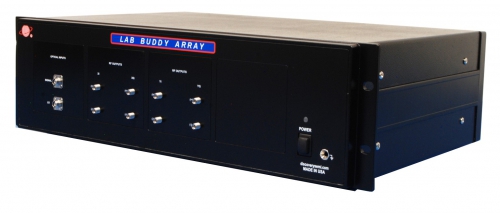

Coherent Receiver Lab Buddy

DSC-R413: DP-QPSK 100 Gb/400 Gb Coherent Optical Receiver Lab Buddy Lab Buddy
  • Easy-to-use lab instrument
  • Four well-matched Linear Balanced PIN/TIA Photoreceivers
  • Integrated Dual-Polarization 90 Degree Optical Hybrid
  • Two modes of operation: Automatic and Manual Gain Control
  • Adjustable differential gain
  • Adjustable RF bandwidth for all channels
  • Dual Polarization I/Q Transmitter Characterization
  • Intradyne Link Testing
  • High Speed ADC and DSP Development
