Description:

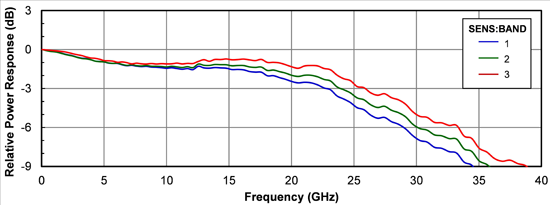

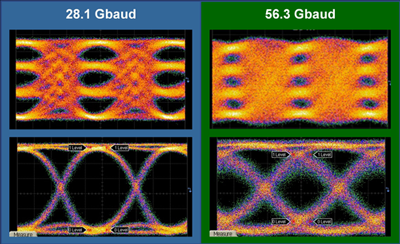

The DSC-R421 is a linear PIN + transimpedance amplifier that is primarily designed for 4-level Pulse Amplitude Modulation (PAM 4) and NRZ-ASK (PAM 2) modulation formats up to 56 Gbaud symbol rate in 1310 nm and 1550 nm single-mode systems. The R421 offers a variety of user-adjustable characteristics such as mode of operation (AGC or manual gain control), RF gain, output amplitude, and bandwidth.

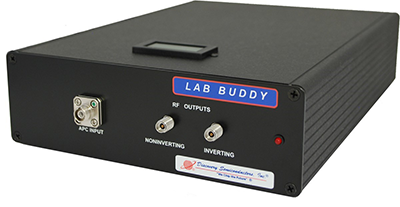

The DSC-R421 is available in Discovery’s computer-controlled Lab Buddy instrument, where several critical parameters can be controlled and monitored using Standard Commands for Programmable Instruments (SCPI) compatible commands via standard RS232C-over-USB interface. The DC photocurrent is monitored over nanoampere to milliampere range and is continuously shown in Lab Buddy’s digital display.
