Linear InGaAs Optical Receiver with Adjustable Gain up to 28 Gbaud

Contact Us and PDF Datasheet Request
Datasheet Request Contact Us

Description:

The DSC-R418 is a linear PIN + trans-impedance amplifier with user-adjustable gain and is primarily designed for 25 to 28 Gbaud / 50 to 56 Gbps 4 level Pulse Amplitude Modulation (PAM-4) and 25 to 28 Gbps NRZ-ASK (PAM-2) modulation formats in 1310 nm and 1550 nm single-mode systems. It is available in Discovery's self-contained Lab Buddy instrument.

The DSC-R418 has a differential conversion gain of up to 3000 V/W, offers linear response to > -6 dBm optical input, -3 dBm of optical overload, and a maximum differential peak-to-peak output of > 1 V.

DSC-R418: Linear InGaAs Optical Receiver with Adjustable Gain up to 28 Gbaud

Fig. 1: DSC-R418 Lab Buddy instrument.

DSC-R418: Linearity plot of DSC-R418.

Fig 2: Linearity plot of DSC-R418.

Salient Features:
  • Linear gain to > -6 dBm optical input
  • High Responsivity at 1310 nm & 1550 nm
  • User-adjustable differential conversion gain of up to 3000 V/W
  • Maximum differential RF output > 1 V
  • Low optical PDL (0.05 dB typical)
Applications:
  • Ideal Test & Measurement Optical Front-End

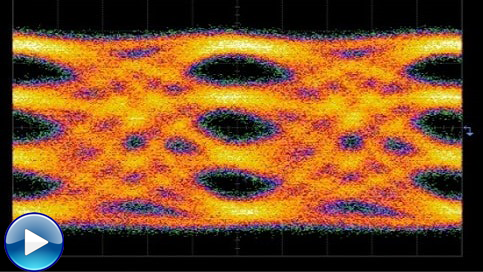

  • 25 to 28 Gbaud / 50 to 56 Gbps PAM-4
  • 100 Gb/s Ethernet
  • Infiniband EDR
  • RF-over-fiber link

Available Models:

  • DSC-R418 – Linear InGaAs Optical Receiver with Adjustable Gain up to 28 Gbaud
