25G/40G Limiting InGaAs Optical Receiver 850nm-1550nm with CDR

Contact Us and PDF Datasheet Request
Datasheet Request Contact Us

Description:

The DSC-R411 is a high-gain PIN + Transimpedance + Limiting amplifier ideally suited for both singlemode & multimode digital applications up to 43 Gb/s. The R411 is available in two GPPO packages, one of which is compliant to the 40G XLMD MSA (multi-source agreement). Due to its high conversion gain of 900 V/W and differential GPPO RF outputs, the R411 can be connected directly to commercial CDR / DEMUX modules. The R411 also offers a high optical overload of > +2 dBm, a very low power dissipation of 200 mW, and utilizes Discovery's high-reliability InGaAs photodiode technology.

DSC-R411: 25G/40G Limiting InGaAs Optical Receiver 850nm-1550nm with CDR

Fig1:DSC-R411 high-gain PIN + Transimpedance + Limiting amplifier

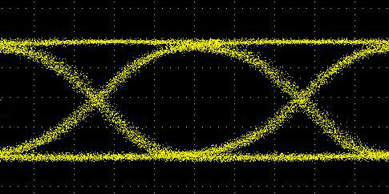

DSC-R411: 25 Gb/s, 850 nm Output Eye Pattern

Fig2: 25 Gb/s, 850 nm Output Eye Pattern for DSC-R411:
{25 Gb/s, 215-1 PRBS, -3 dBm optical input}

Salient Features:
  • High differential conversion gain of 900 V/W
  • High Responsivity at 1310 nm, 1550 nm & L-band
  • 850 nm and multimode fibered (MMF) versions available
  • Sensitivity of -10.5 dBm at a BER of 10-12
  • Overload of +4 dBm at a BER of 10-12
  • Differential AC-coupled GPPO-style RF outputs
  • 40G XLMD MSA compliant
  • Very low power dissipation of 200 mW
  • Low optical PDL @ 1550 nm (0.05dB typical)
  • Meets GR-468 reliability standard
Applications:
  • 40 Gb/s SONET/SDH OC-768/STM-256 short reach
  • 100 Gb/s Ethernet
  • 25 Gb/s 850nm applications such as Infiniband, Fibre Channel & CEI 25G/28G
  • Digital applications up to 43 Gb/s baud rate
  • RF photonics applications requiring low noise and high conversion gain
  • Military communications
25 Gbaud Multimode Demo Video from OFC/NFOEC
